ZDR with Private Safety Processing (PSP)

Connect your own AWS S3 bucket or Azure Blob container to an OpenAI project. Follow the setup steps for your cloud, then register and validate the connection.

Before you start

• Ask your OpenAI contact to approve your organization.
• Choose a storage region that matches your project’s data residency. You need permission to create storage and delegate access in your cloud account.
• Have an organization administrator register and validate storage in the API console. For the Management API, use an OpenAI organization Admin API key. Project administrators can view guidance and status; a project inference key won’t work for the Management API calls.

Open storage setup in the API console

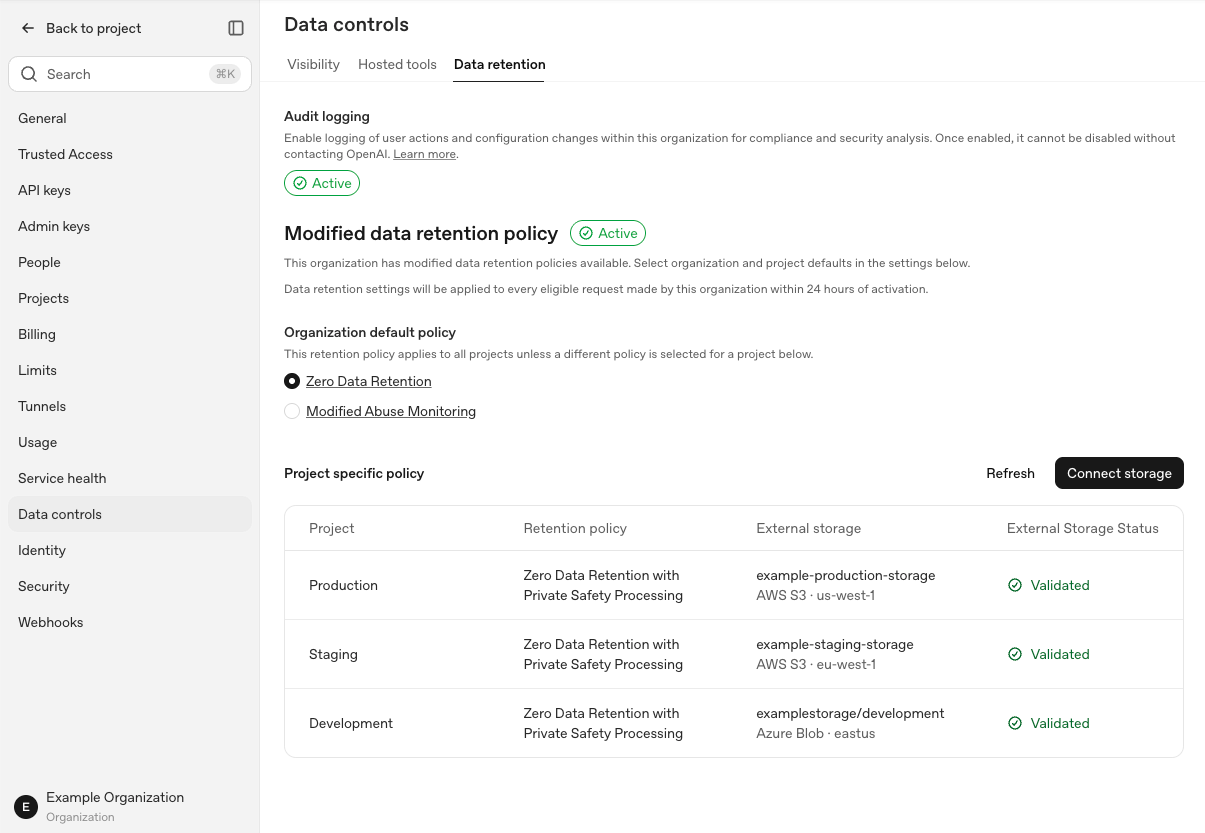

1. Open Organization settings > Data controls > Data retention, then select Connect storage.
2. In Connect external storage, choose AWS or Azure and select your project. You can also open Connect storage from Project Settings > Data retention.
3. Complete the cloud setup below. Then enter your storage details in the modal and select Connect and validate.

Cloud-specific Setups

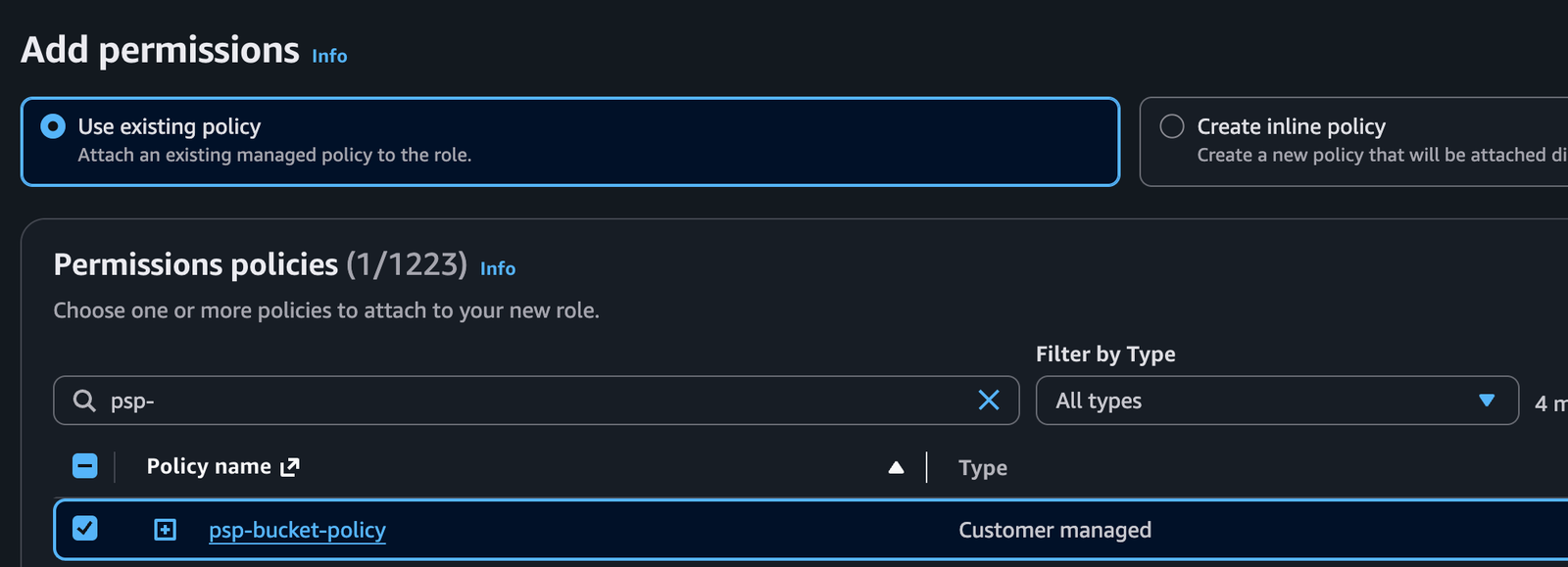

123456789101112131415{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",

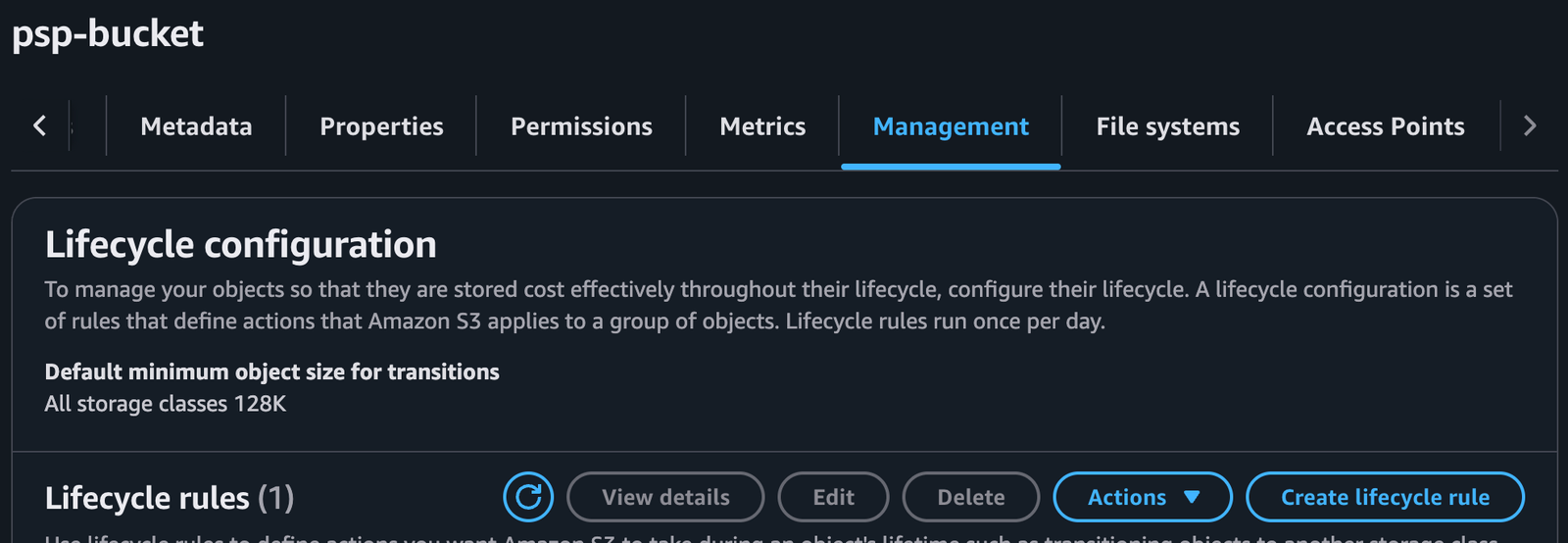

      "Action": "s3:GetLifecycleConfiguration",
      "Resource": "CUSTOMER_BUCKET_ARN"
    },
    {
      "Effect": "Allow",
      "Action": ["s3:GetObject", "s3:PutObject", "s3:DeleteObject"],
      "Resource": "CUSTOMER_BUCKET_ARN/*"
    }
  ]
}

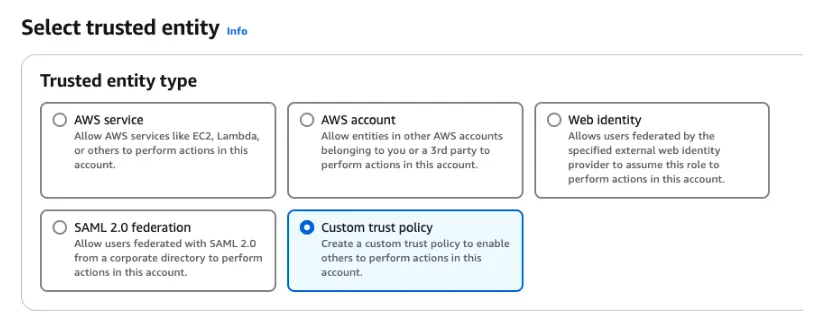

1234567891011121314151617{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::790389265272:role/CustomerStorage"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": ["CUSTOMER_PROJECT_ID"]
        }
      }
    }
  ]
}

123az login --tenant '<CUSTOMER_TENANT_ID>'
az ad sp create --id 'e5627955-3059-4a88-89f8-73843190624d' \
  --query '{name:displayName,objectId:id}' -o table

Register your storage

After completing the cloud setup above, use either the API console or the Management API to register and validate your storage. You only need to use one method.

Option 1: API console

Sign in as an organization administrator. The API console uses your signed-in session; you don’t need an Admin API key or curl commands for this method.

1. Open Connect storage

Open Organization settings > Data controls > Data retention and select Connect storage. You can also connect from Project Settings > Data retention.

2. Enter your storage details

Choose AWS or Azure, then select the project. If you opened the modal from project settings, that project is already selected. If Registered storage appears, choose Connect new storage to add a destination.

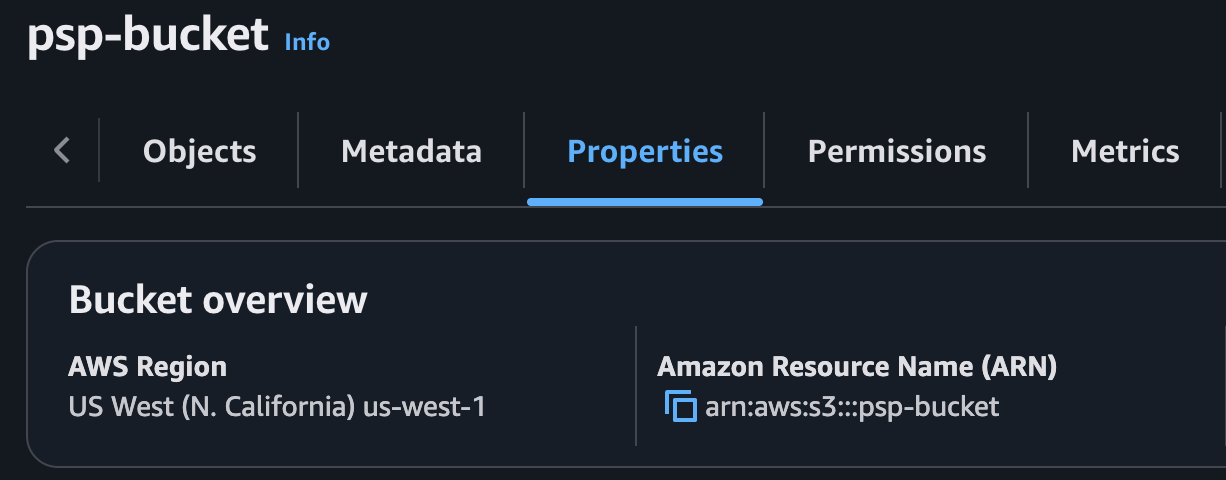

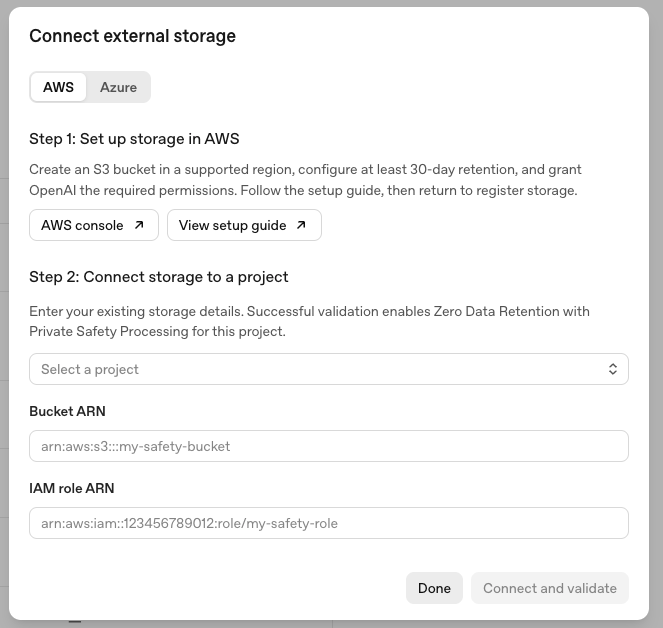

For AWS, enter the Bucket ARN and IAM role ARN from your cloud setup.

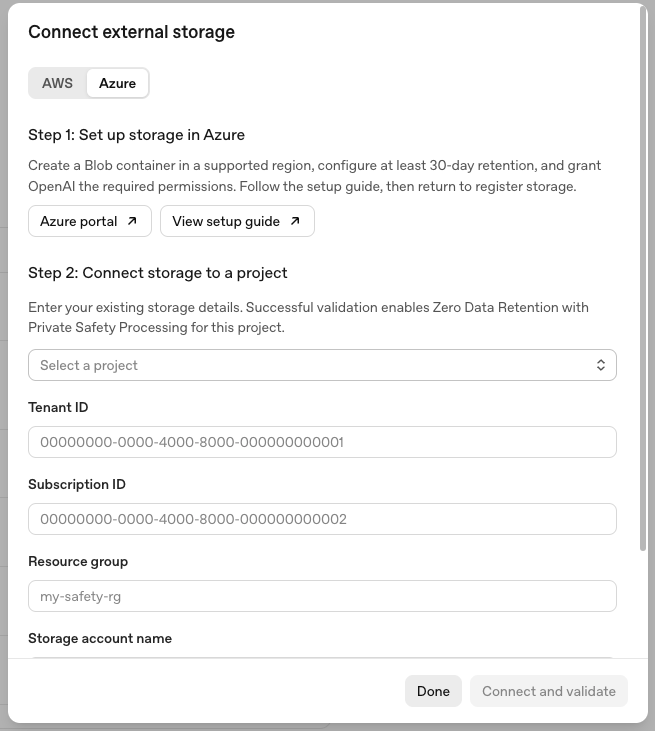

For Azure, enter Tenant ID, Subscription ID, Resource group, Storage account name, and Container name. Scroll down in the modal to complete all fields.

3. Connect and validate

Select Connect and validate. The API console registers the storage, runs validation, and refreshes the storage status and project policy. Registration alone doesn’t change the policy.

Wait for Storage validated and confirmation that the project now uses ZDR with PSP, then select Done.

If validation fails after registration, fix the reported issue and select Retry validation. To resume later, select the destination under Registered storage and choose Validate storage. If the API console can’t refresh the result, select Refresh status before starting over.

Option 2: Management API

Use an organization Admin API key for this method. Register storage with the commands below, then follow 3. Verify your setup to run validation.

1. Prepare your API settings

Load your organization Admin API key securely into OPENAI_ADMIN_KEY.

Set OPENAI_API_BASE to the endpoint confirmed for your project: https://api.openai.com for global, https://us.api.openai.com for US, or https://eu.api.openai.com for Europe.

Replace the placeholders below with that endpoint and your OpenAI organization ID. Run the remaining commands in the same shell session.

123OPENAI_API_BASE='<OPENAI_API_BASE>'
OPENAI_ORG_ID='<OPENAI_ORG_ID>'
OPENAI_STORAGE_URL="$OPENAI_API_BASE/v1/organization/external_storage"

2. Send the registration request

Run the request for your provider only. Replace every CUSTOMER_... placeholder with your IDs and the resources you created.

AWS S3

123456789101112curl --fail-with-body -sS -X POST "$OPENAI_STORAGE_URL" \
  -H "Authorization: Bearer $OPENAI_ADMIN_KEY" \
  -H "OpenAI-Organization: $OPENAI_ORG_ID" \
  -H 'Content-Type: application/json' \
  --data-binary '{
    "project_id": "CUSTOMER_PROJECT_ID",
    "provider": {
      "type": "aws",
      "bucket": "CUSTOMER_BUCKET_ARN",
      "role_arn": "CUSTOMER_ROLE_ARN"
    }
  }'

Azure Blob Storage

123456789101112131415curl --fail-with-body -sS -X POST "$OPENAI_STORAGE_URL" \
  -H "Authorization: Bearer $OPENAI_ADMIN_KEY" \
  -H "OpenAI-Organization: $OPENAI_ORG_ID" \
  -H 'Content-Type: application/json' \
  --data-binary '{
    "project_id": "CUSTOMER_PROJECT_ID",
    "provider": {
      "type": "azure",
      "tenant_id": "CUSTOMER_TENANT_ID",
      "subscription_id": "CUSTOMER_SUBSCRIPTION_ID",
      "resource_group": "CUSTOMER_RESOURCE_GROUP",
      "account_name": "CUSTOMER_STORAGE_ACCOUNT",
      "container": "CUSTOMER_CONTAINER_NAME"
    }
  }'

The response contains an id beginning with extstorage_ and status: "pending". Keep the ID for validation. The API console shows Pending validation and leaves the project’s retention policy unchanged.

3. Verify your setup

For API validation, replace EXTERNAL_STORAGE_ID with the ID returned by registration, then run:

12345EXTERNAL_STORAGE_ID='<EXTERNAL_STORAGE_ID>'
curl --fail-with-body -sS -X POST \
  "$OPENAI_STORAGE_URL/$EXTERNAL_STORAGE_ID/validate" \
  -H "Authorization: Bearer $OPENAI_ADMIN_KEY" \
  -H "OpenAI-Organization: $OPENAI_ORG_ID"

A successful response has status: "validated". Validation checks configuration and access, then activates customer-managed retention for that project. The API console shows Validated and the read-only policy Zero Data Retention with Private Safety Processing.

If you used the Management API, retrieve the saved registration:

1234curl --fail-with-body -sS \
  "$OPENAI_STORAGE_URL/$EXTERNAL_STORAGE_ID" \
  -H "Authorization: Bearer $OPENAI_ADMIN_KEY" \
  -H "OpenAI-Organization: $OPENAI_ORG_ID"

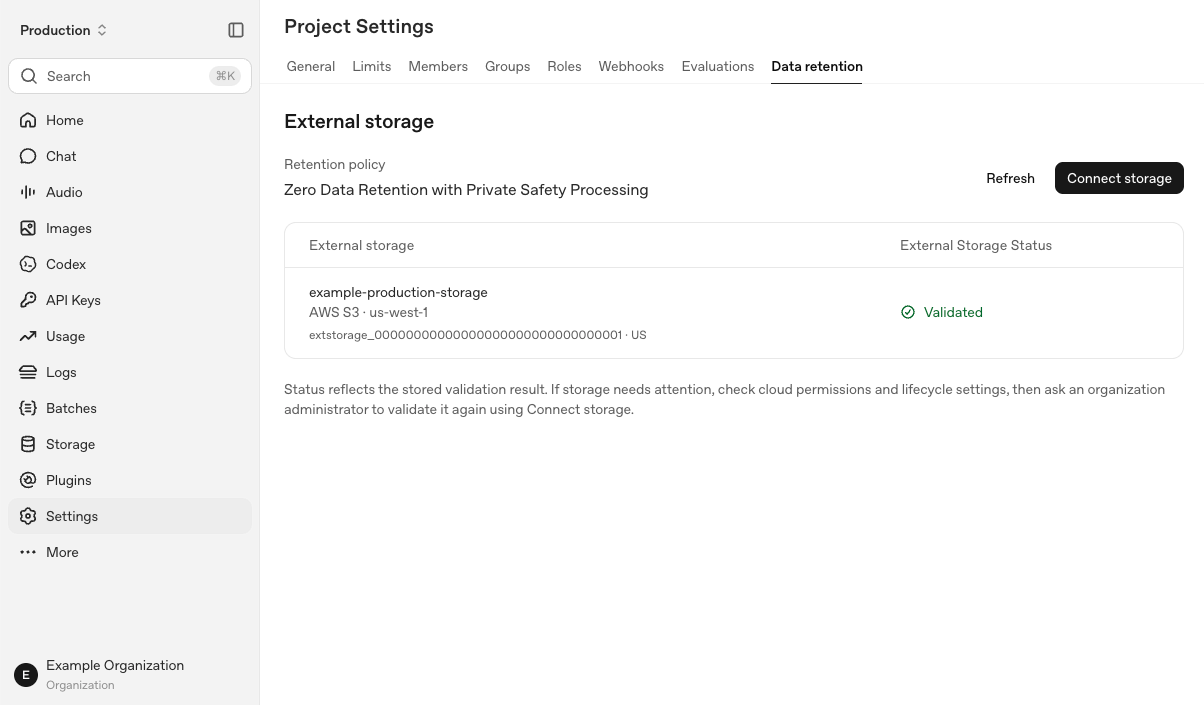

For either method, open Project Settings > Data retention and select Refresh. Confirm the destination, provider, geography, and Validated status, then check the policy is Zero Data Retention with Private Safety Processing. The organization Data retention table also shows storage and status for each project.

Validated records a successful check, not continuous storage health. Refresh doesn’t rerun validation. Use Operations and Troubleshooting for ongoing monitoring and revalidation.
