Secure MCP Tunnel

Secure MCP Tunnel lets you connect private MCP servers to supported OpenAI products without opening inbound firewall ports or exposing those servers to the public internet. Run tunnel-client inside the network that can already reach your MCP server; it opens an outbound HTTPS path to OpenAI, pulls queued MCP work, forwards requests locally, and returns responses through the same tunnel.

Use Secure MCP Tunnel when

• Your MCP server runs on a private network, on-premises, on a developer machine, or behind existing access controls.
• You want ChatGPT, Codex, the Responses API, or another supported OpenAI surface to use that server without making the MCP server public.
• Your network allows the host running tunnel-client to make outbound HTTPS requests to OpenAI.
• Start with the MCP and Connectors guide for general MCP concepts.

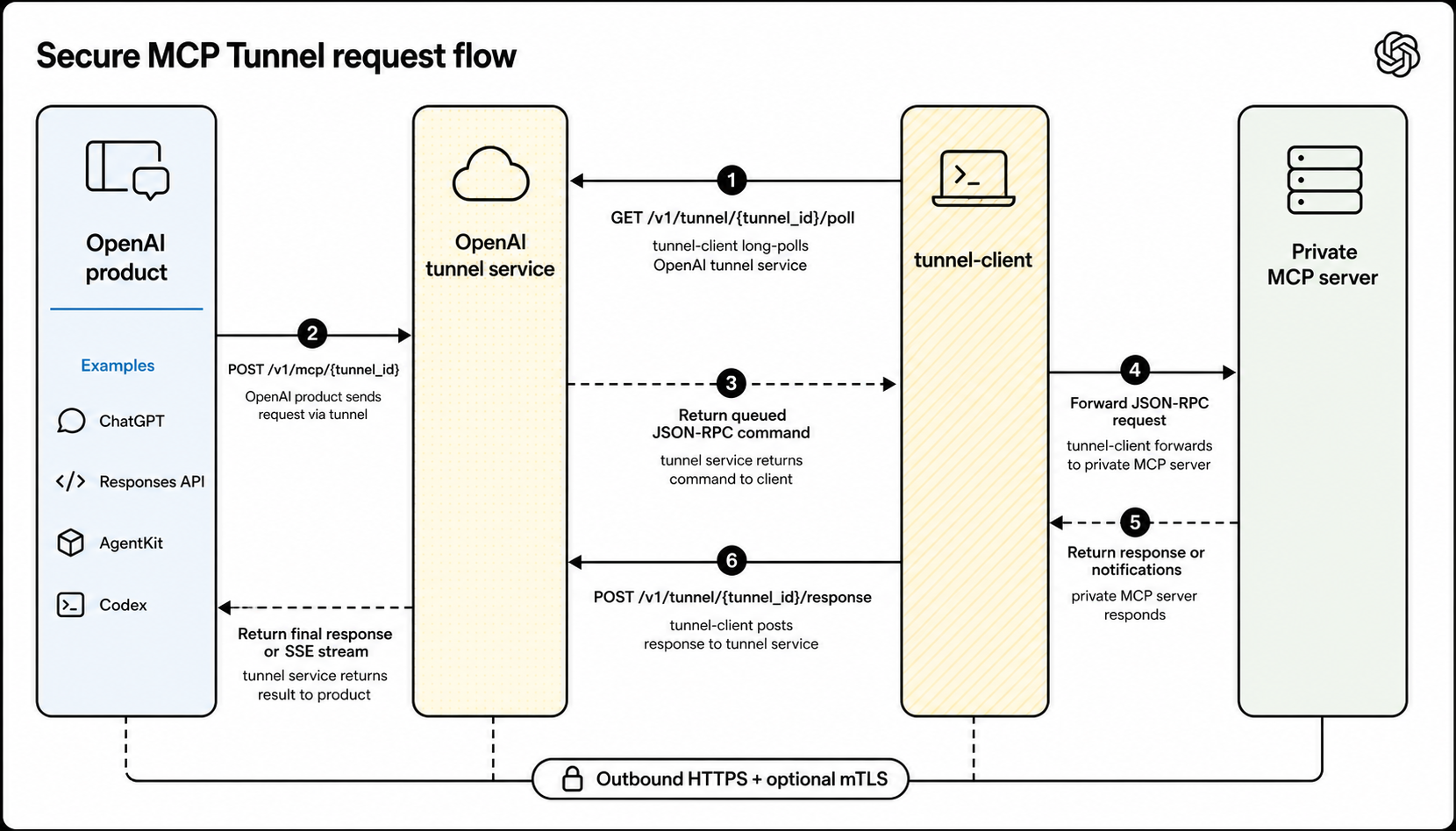

How it works

1. Create or manage an OpenAI-hosted MCP tunnel endpoint in Platform tunnel settings.
2. Run tunnel-client inside the network that can reach your private MCP server.
3. Configure tunnel-client with the tunnel identity and the private MCP server address.
4. OpenAI products send MCP requests to the OpenAI-hosted tunnel endpoint.
5. tunnel-client long-polls for queued work, forwards each JSON-RPC request to the private MCP server, and posts the response back through the tunnel.

The private MCP server does not need a public listener. The OpenAI-hosted endpoint gives supported products a normal MCP request path, while the network initiation point stays inside your boundary. When a connector asks for streamed results, the tunnel path can forward intermediate server-sent events.

Before you start

You need:

• A tunnel_id from Platform tunnel settings.
• A runtime API key for tunnel-client. The key principal needs Tunnels Read + Use for the target tunnel.
• A tunnel manager with Tunnels Read + Manage if you need to create or edit tunnel metadata.
• An MCP server that tunnel-client can reach over stdio or HTTP from inside your network.

Set up tunnel-client

Open Platform tunnel settings, then download the latest public tunnel-client release from openai/tunnel-client. Keep your runbook pointed at the latest-release URL instead of hard-coding a specific release URL.

For a local stdio MCP server, the shortest profile-based flow is:

1
2
3
4
5
6
7
8
9
10
export CONTROL_PLANE_API_KEY="sk-..."

tunnel-client init \
  --sample sample_mcp_stdio_local \
  --profile local-stdio \
  --tunnel-id tunnel_0123456789abcdef0123456789abcdef \
  --mcp-command "python /path/to/server.py"

tunnel-client doctor --profile local-stdio --explain
tunnel-client run --profile local-stdio

For an HTTP MCP server, use --mcp-server-url https://mcp.internal.example.com/mcp instead of --mcp-command.

Keep tunnel-client run ... healthy while you create or test the connector. Connector discovery and MCP tool calls depend on the running client.

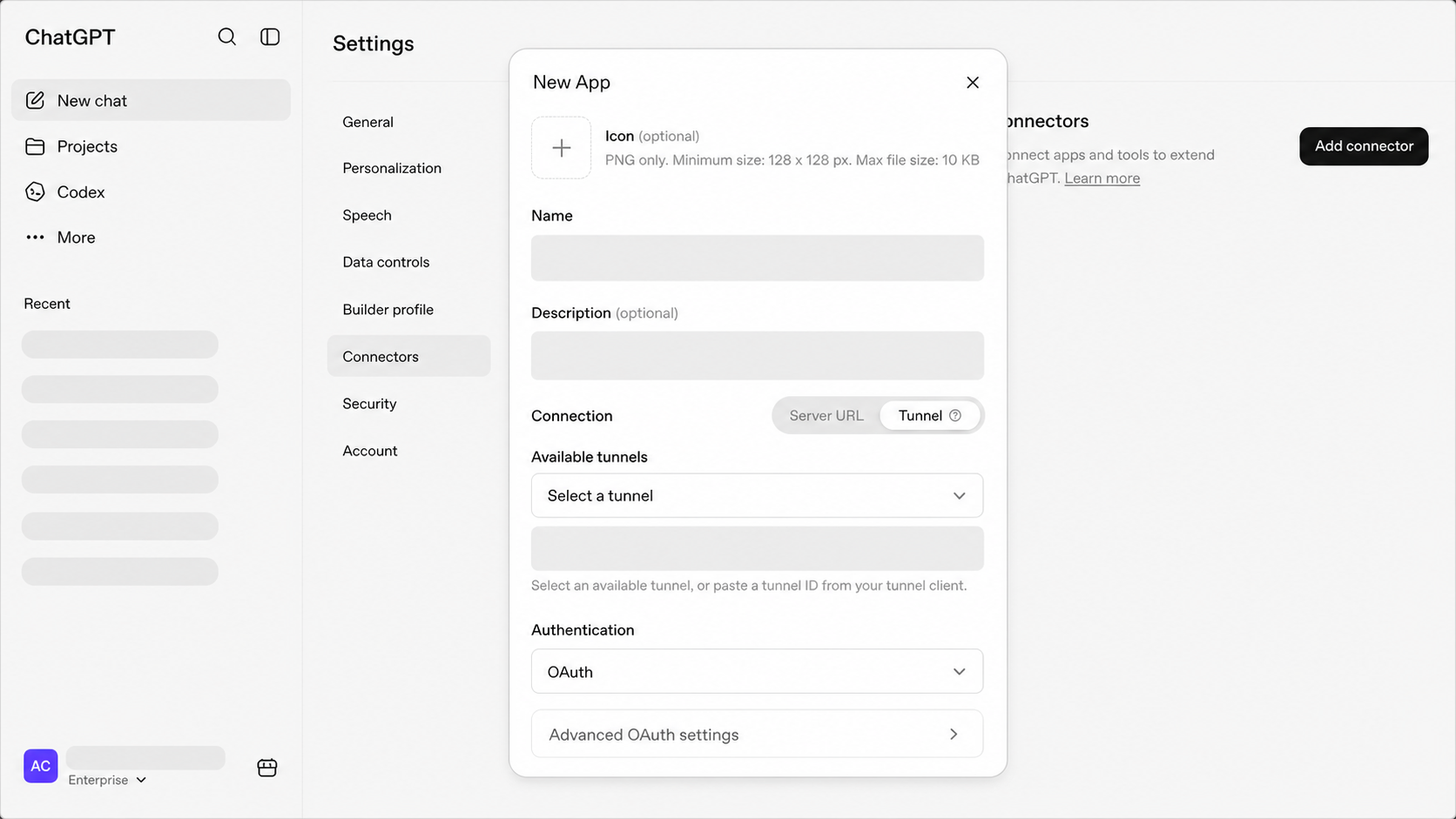

Connect from ChatGPT

Open ChatGPT connector settings, create a custom connector, and choose Tunnel under Connection. Select an available tunnel when ChatGPT lists it, or paste a valid tunnel_id if you already have one.

If the tunnel does not appear in ChatGPT, verify that the tunnel is associated with the target workspace and that the connector operator has Tunnels Read + Use.

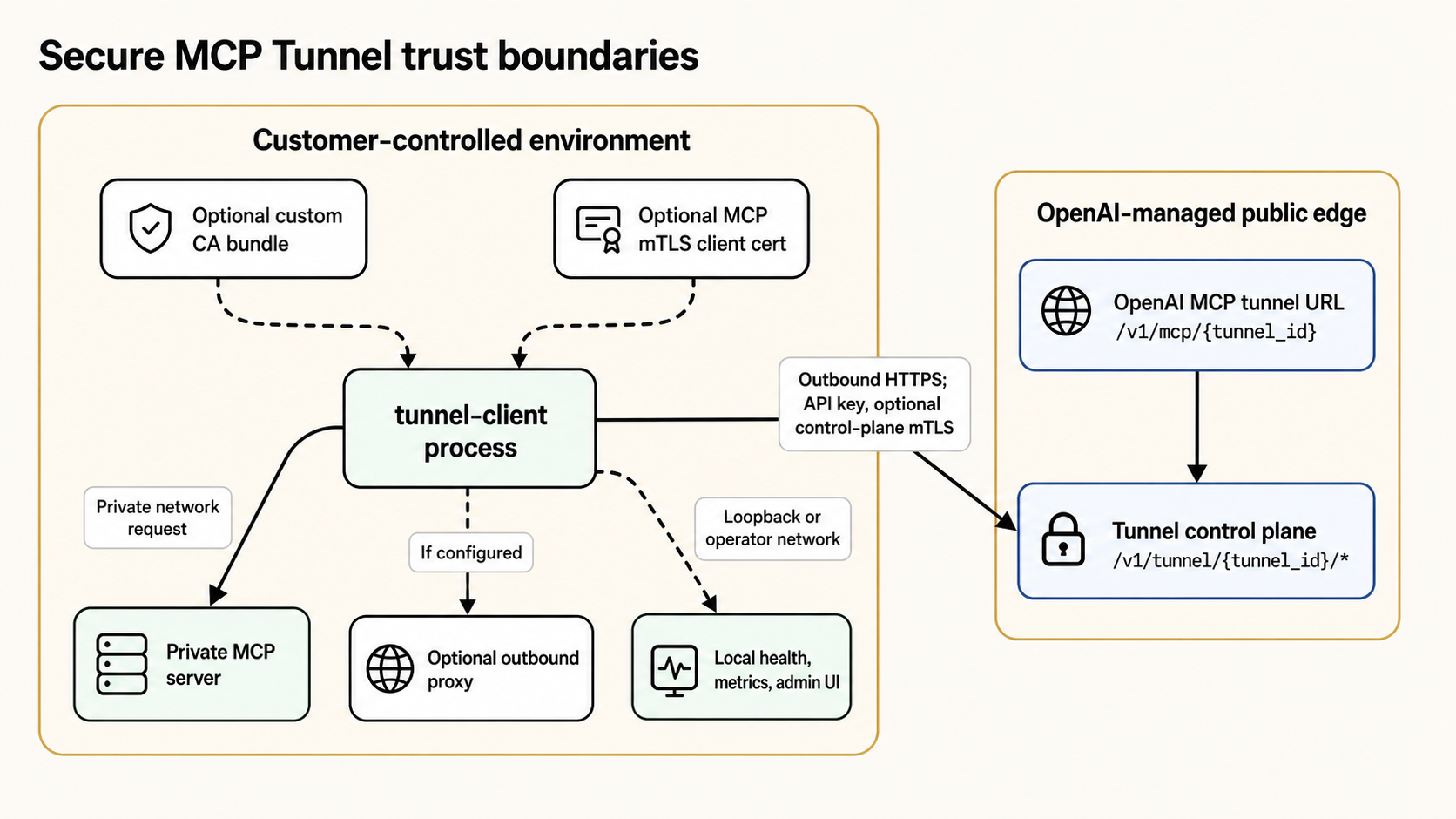

Security and networking

• The MCP server address stays private and is used only from inside the environment where tunnel-client runs.
• tunnel-client authenticates to the OpenAI tunnel control plane; supported OpenAI products use the OpenAI-hosted tunnel endpoint.
• Tunnel access follows the existing organization and workspace context instead of introducing a separate public ingress path.
• tunnel-client supports enterprise networking requirements such as outbound proxies, custom CA bundles, control-plane client certificates, and MCP-side mTLS.
• The embedded Harpoon MCP server is limited to labeled, allowlisted HTTP callouts used by flows such as OAuth metadata handling. It is not a general-purpose outbound proxy.

Troubleshooting

• Tunnel not visible in ChatGPT: Check the tunnel workspace scope and the connector operator’s Tunnels Use permission.
• Connector discovery or tool calls fail: Confirm that tunnel-client run ... is still running, then re-run tunnel-client doctor --profile <name> --explain.
• You can inspect a tunnel but cannot edit it: The operator likely has Tunnels Read but not Tunnels Manage.
• tunnel-client exposes /healthz, /readyz, /metrics, and a local admin UI at /ui.
• Use those surfaces to confirm that the client is healthy, ready, and polling before testing from ChatGPT, Codex, or an API flow.
• If the client is not connected, requests through the tunnel fail until tunnel-client reconnects.
• Raw HTTP logging is disabled by default, and support exports are redacted.

OAuth

• OAuth discovery can travel through the tunnel path so the MCP server itself can remain private.
• The tunnel preserves the upstream authorization server metadata needed for browser-facing OAuth flows.
• The authorization server itself is not automatically tunneled. If it is unreachable from the public internet and from the tunnel-client host, the OAuth flow can still fail even when the MCP server is reachable.

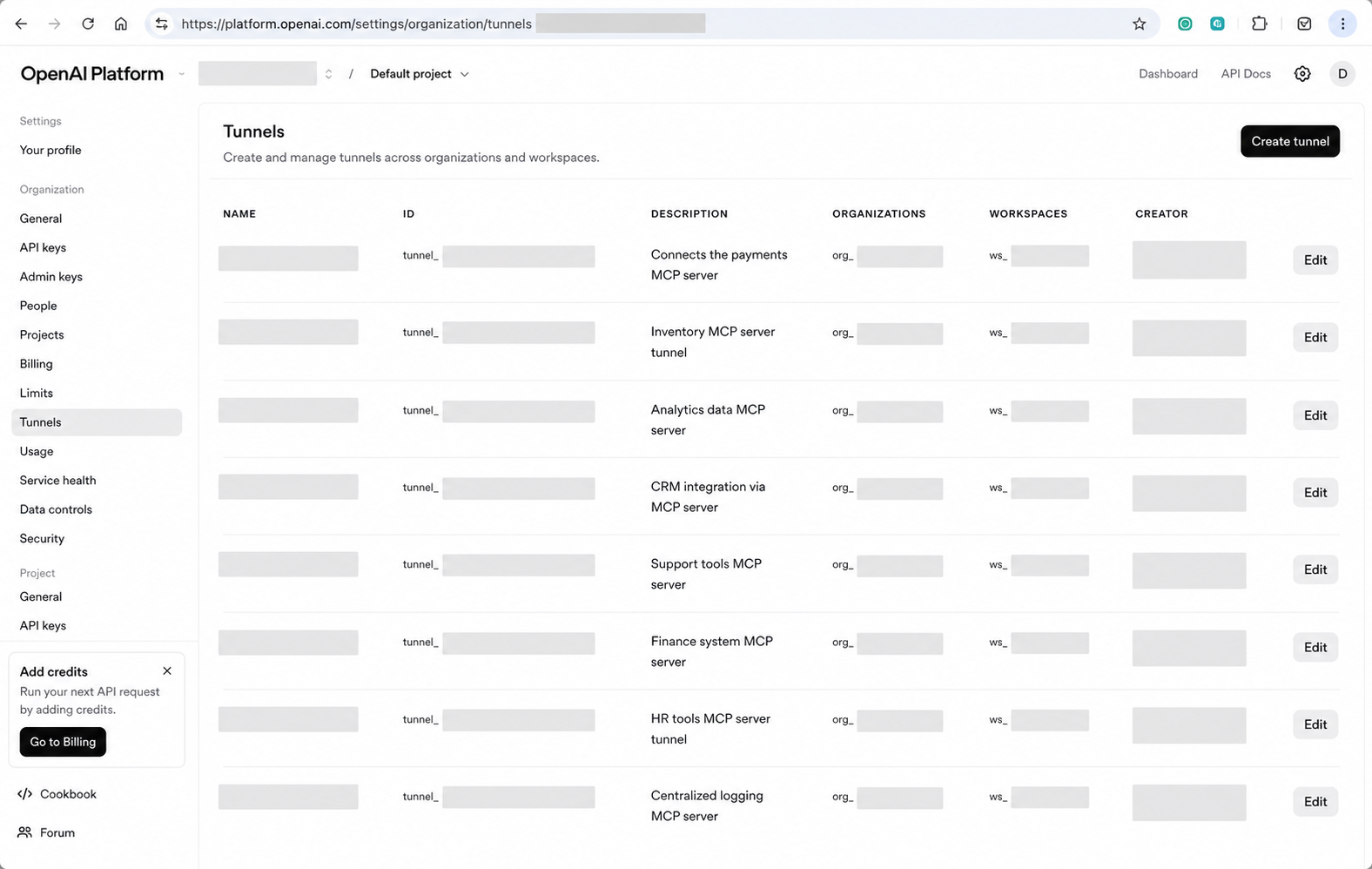

Where to configure it

• Manage OpenAI-hosted MCP tunnel endpoints in Platform tunnel settings.
• Use a tunnel when creating a connector from ChatGPT connector settings.
• For Codex or API flows, use the tunnel-backed MCP target exposed by the supported product surface.

Next steps

• Create or manage the tunnel in Platform tunnel settings.
• Validate your tunnel-client profile with tunnel-client doctor --profile <profile> --explain.
• Connect the tunnel from ChatGPT connector settings or the supported OpenAI surface you are using.
